HEARD, NOT SEEN

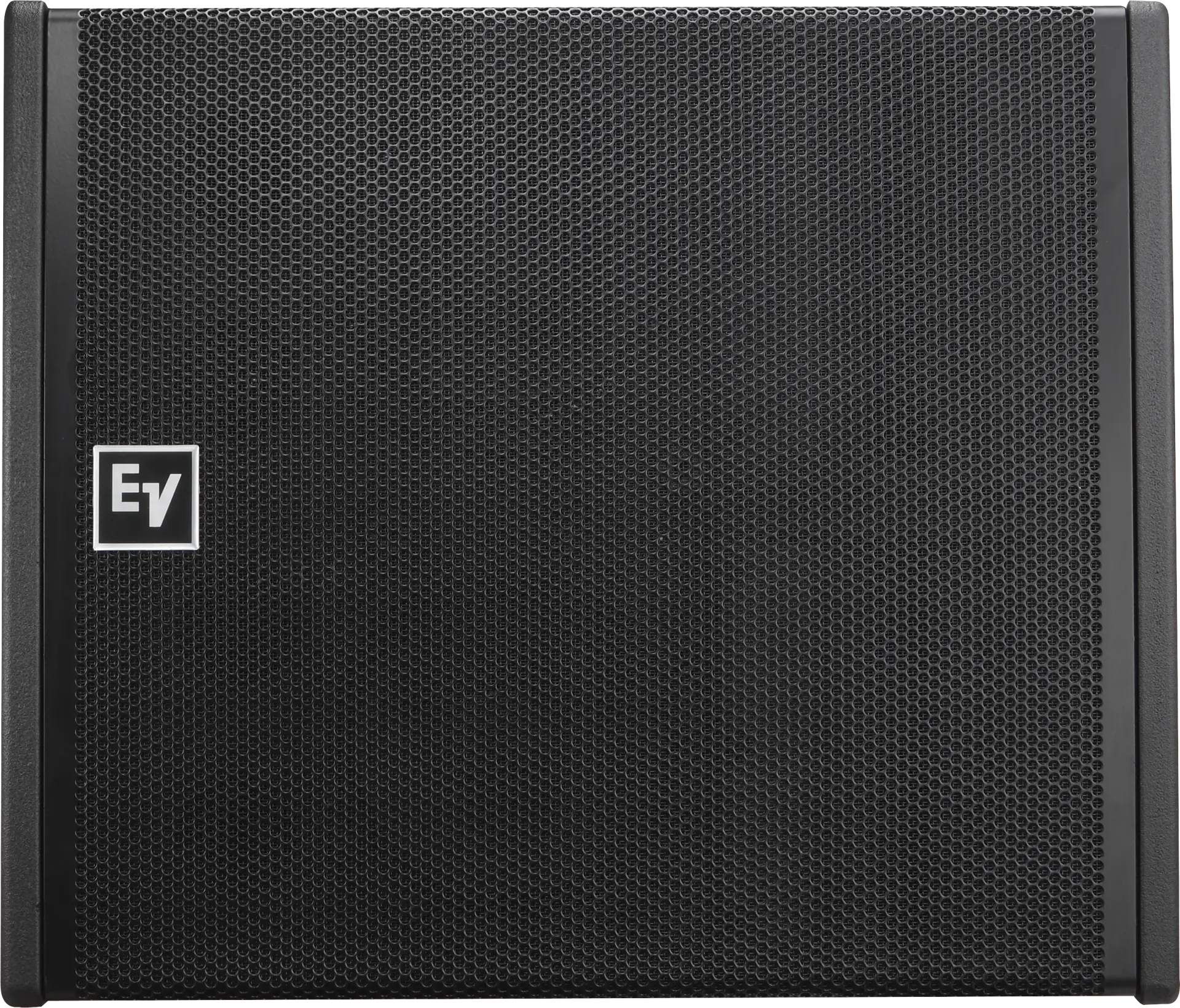

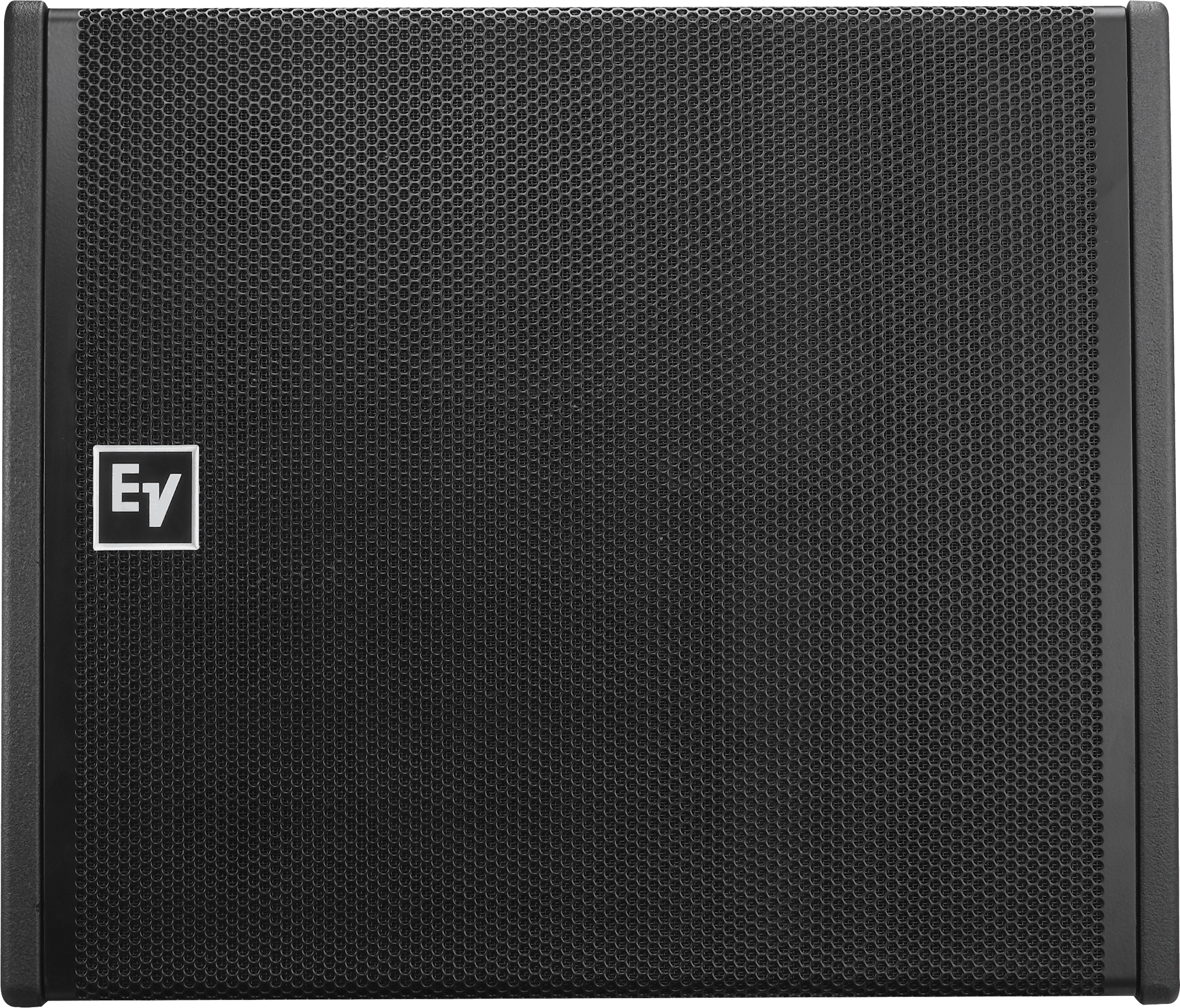

EVA-2082S/1220-BLK Two LF, four HF, 120x20 Near Throw Black
Cover the room, and hide the rig that gets you there. Each EVA-2082S module stacks two line-array elements, each pairing an 8-inch EVS2008 woofer with two DH2005 1.25-inch titanium compression drivers on Hydra plane-wave generators, crossed at 1740 Hz. Four coverage patterns, from 90 by 6 long throw to 120 by 20 short throw, shape the array to the space. Internal metal rigging carries the load from module to module, the EVA Grid flies the array, and cosmetic side covers conceal every piece of hardware for a smooth, monolithic look. A 129 dB continuous module in an EVCoat plywood enclosure, with PI versions rated IP55 for indirect outdoor exposure: fixed installs, indoors or out, where the hardware has to disappear.
Key features
Features
- Wide, even throw — 120° horizontal by 20° vertical coverage from a compact module.
- Concert-level output — up to 129 dB continuous and 135 dB peak SPL.
- Full, clear range — 60 Hz to 19 kHz (-3 dB) from dual EVS2008 woofers and four DH2005 drivers.
- Built for the weather — weatherized cabinet with internal steel rigging straps and EVCoat finish.
- Designed to array — purpose-built module for fixed-install line-array systems, 16-ohm nominal.
Specifications
Identification
- Series / Family
EVA FULL RANGE
- Material Number
F.01U.416.673
Full-range modules and flown low end, on the same grid.

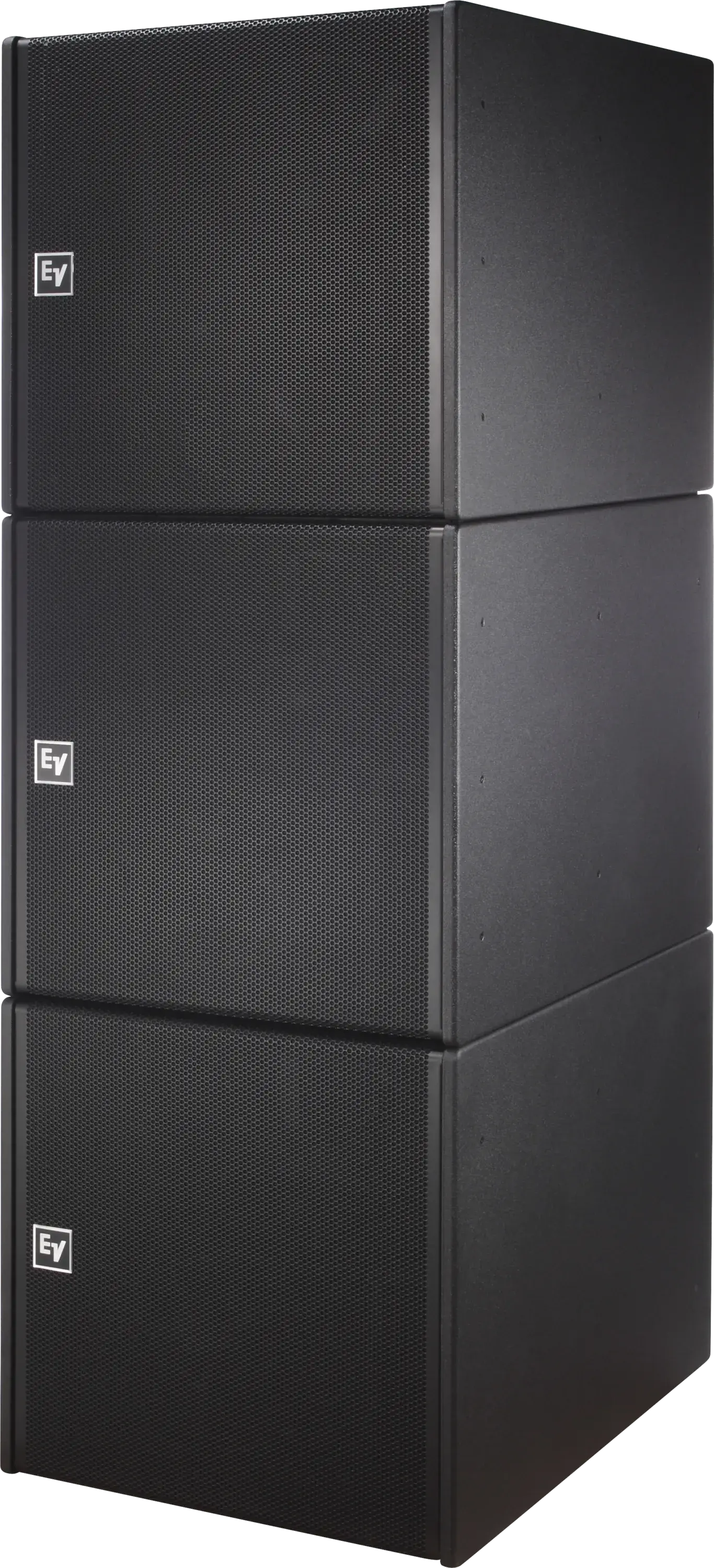

The EVA-2151D subwoofer arrays at the top of a full-range EVA array or flies standalone on the EG2 grid.
